New "Dark" version now available!

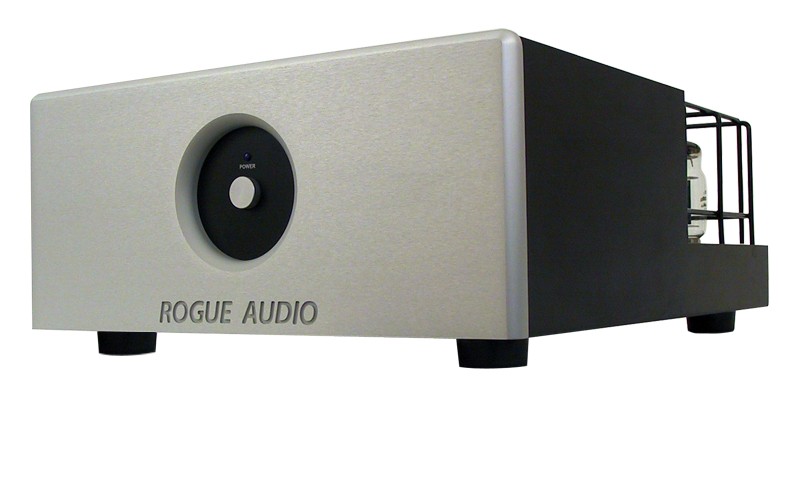

Power, Grace, and Precision -- when you are ready for the ultimate
in vacuum tube amplification, look no further than the Rogue Audio
M-180 monoblocks. With 180 Watts of pure tube power, these monoblocks
stunningly accomplish the impossible. After drawing the curtains
aside on a soundstage of full height, width, and depth, the pace
and musicality of the M-Series provide a riveting performance that
will leave you breathless. And along with their profound sonic merits,
the monoblocks are aesthetically exquisite amplifiers that will
stoically serve as the cornerstones of your system.
Using circuitry derived from our Apollo amplifiers, the M-180s are
marked by an exceptional design that places it squarely at the forefront
of tube technology. Just a few of the notable features are a "slow
start" logical turn-on for extended tube life, a massive high
capacity power supply, and the ability to externally switch between
either ultra-linear or pure triode operation.The highly efficient
design also means cool running and greatly extended tube life. Other
refinements include balanced (XLR) and RCA inputs, mechanically
isolated transformers, matched octets of KT120 output tubes, and
separate 4 and 8 ohm taps on the rear. In keeping with Rogue Audio's
"quality by design" philosophy, only the finest components
are used in the construction of these remarkable amplifiers. See
for yourself why the M-180 monoblocks are a Stereophile Magazine
"Class A Recommended Component."
Read
the Stereophile review here!
Download product literature here
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
General Features:
[back to top]
- Ultra-wide bandwith output transformers
- Massive high storage power supply
- True balanced and single ended inputs
-
Heavy-duty gold plated XLR and RCA inputs
-
External switch for triode or ultralinear operation
- Integral bias meter makes biasing a snap
-
(4) KT120, (2) 12AU7, (1) 12AX7 tubes
-
Both 4 and 8 ohm output taps provided
-
1/2" machined and engraved faceplate
- Heavy-duty gold plated binding posts
- All precision components
- Mechanically isolated transformers
- Welded-wire tube cage
- Heavy (2 ounce) copper circuit board
- Machined aluminum faceplate
- Matched octets of output tubes
- Entirely designed and built in the USA
- Fully tested, burned-in, and auditioned
- 3 year limited warranty (6 months on tubes)
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Specifications:
[back to top]
- output power: 180WPC
- frequency response: 5Hz - 50KHz ± 1dB
- THD: <0.1% typ., <1% at rated power
- input sensitivity: 1.0V RMS
- input impedance: 200K Ohms
- dimensions: 14½"W x 7"H x 19"D
- weight: 55 lbs. ea.
- power requirements: 120/240V - 50/60Hz
Specifications
subject to change without notice
|
