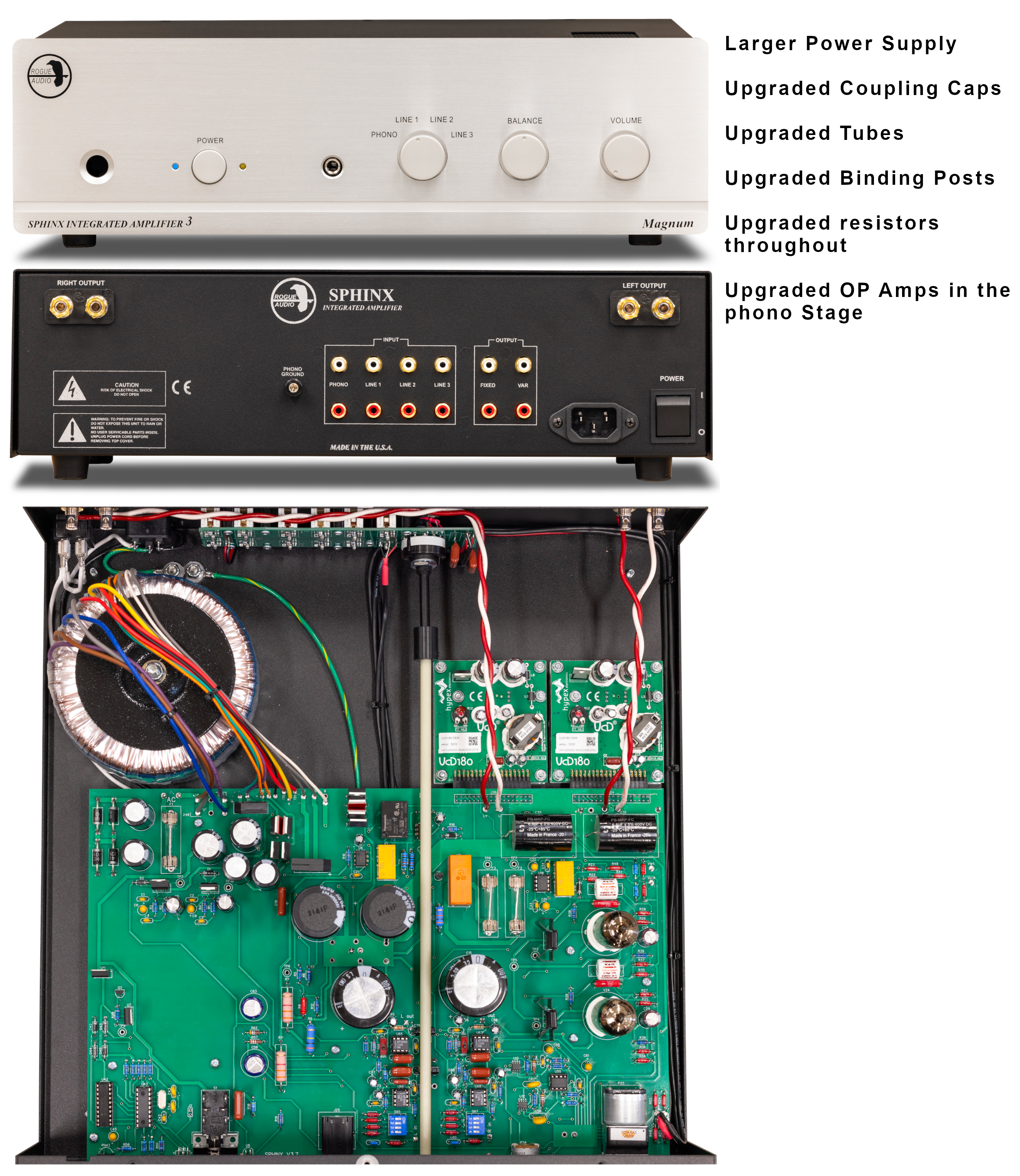

| New "Magnum" version now available!
Dynamic, transparent, and profoundly musical, the Rogue Sphinx v3 sets
a new standard in affordable integrated amplifiers. Utilizing sophisticated
circuitry borrowed from our most advanced designs, the Sphinx is
able to outperform separates costing far more than this single box
design. And with 100 watts of hybrid power, this integrated is capable
of realistic volume levels that will rival the clarity and presence
of the original performance.
The
Sphinx v3 contains a discrete MOSFET headphone amplifier capable of driving even the most demanding headphones. An excellent user adjustable phono with 44/60dB of gain will accommodate your favorite MM or MC cartridge.
Active and fixed outputs allow for the addition of a subwoofer or
other outboard devices, and the active output is driven by the tubes for the best possible sound. A high capacity linear power supply provides
tremendous energy storage to recreate the deepest bass passages
while various regulated power supply stages provide ultra smooth
sound in the midrange and treble. The machined aluminum faceplate
is available in either black or silver to compliment the rest of
your components and the optional remote further adds the convenience
of remote volume operation.
Download product literature here
A
few of the many terrific reviews of the Sphinx...
Stereophile - Herb Reichert
...one of the greatest high-value audio products of all time.
Audiophile Audition - Ric Mancuso
"Beyond highly
recommended,..."
The
Absolute Sound - Ron Doering
Recommened,
and I've purchased the review sample. So there!
Stereophile - Herb Reichert
I am experiencing genuine musical happiness.
Soundstage!Goodsound!
- Hans Wezel
"Value
never sounded so damn good... Hans Wetzel"
HIFI+ Issue 101-Alan Sircom
"Highly
recommended."
A
few of the 2013 CES show reports can be found here:
Soundstage
- Doug Schneider
Analog
Planet - Michael Fremer
Stereophile
- Stephen Mejias


-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
General Features:
[back to top]
- 100 WPC/8 ohms
-
Pure tube mu-follower preamplifier
-
Slow start turn on sequencing
-
Green design with extremely low power consumption
-
Standby 6W, 1/2 power 132W, full power 385W
-
Damping factor > 1000
-
Discrete MOSFET based headphone amplifer
-
44/60dB MM/MC user adjustable phono section
-
Custom 375 VA toroidal transformer
- Massive high storage linear power supply
- Matched 12AU7 preamplifier tubes
- Gold plated RCA inputs
- Gold plated binding posts
- Machined aluminum faceplate
- 4 inputs (phono, line 1,2,3)
- Tube driven active outputs for subwoofer or biamping
- Alps custom volume potentiometer
- All precision components
- Heavy (2 ounce) copper circuit board
- Metal remote volume control (optional)
- Fully tested, burned-in, and auditioned
- Detachable IEC power cord
- Entirely designed and hand built in the USA
- 3 year limited warranty (6 months on tubes)
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Specifications:
[back to top]
- output power: 100 WPC minimum
- THD: <0.1% typ., <1% at rated power
- frequency response 20Hz - 20KHz
-
phono section 44/60 dB
- input sensitivity: 1.0V RMS
- dimensions: 15.5" W x 17" D x 5" H
- weight: 25 lbs
- shipping weight: 30 lbs
- power requirements: 120V/240V - 50/60Hz
Specifications
subject to change without notice
|
